Feature
1, Material: the inner and outer rings are bearing steel(GCr15).
2, Heat Treatment: the inner and outer rings are quenched and phosphating.
3, Structure: There are oil groove and oil hole in the inner and outer ring.The outer ring has an axial slot.
4, The sliding surface coated with MoS2 powder lubricant.
5, Performance Characteristic: It has the advantages of abrasion resistance, corrosion resistance,and self aligning . It applies to the machine which requires heavy radial load and axial load in a small-range direction.
Data Sheet
| Item | GEEW125ES /GE125LO |
| Material | Chrome Steel/ GCr15 |
| ID | 125 mm |
| OD | 180 mm |
| Weight | 8.49 kg |
| Slide contact | steel to steel |
| Lubrication | oil,greese |
| Model Available | GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ...... |
| Application | Agricultural machinery, Shock absorber, etc |
| Package | Tube, carton box, wooden box, pallet |
| Delivery time | 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity |
| OEM | Accept |
| Payment terms | TT, L.C, D/A, D/P, Western Union, Paypal |

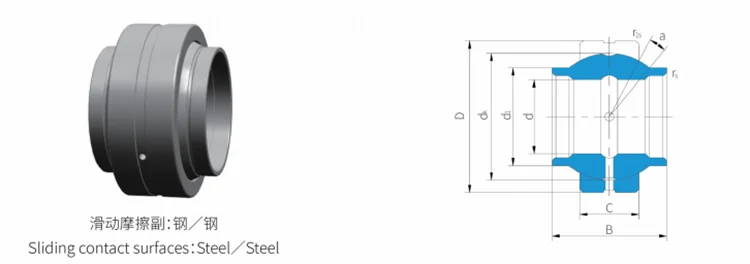

Different Sizes for Your Reference
Bearing
Number | Dimensions (mm) | Load Ratings kN | Weight
≈kg |
| d | D | B | C | d1 | dk | rs | r1s | a | Dynamic | Static |
| max | min | min | ≈ |
| GEEW12ES | 12 | 22 | 12 | 7 | 15.5 | 18 | 0.3 | 0.3 | 4 | 10 | 53 | 0.022 |
| GEEW15ES | 15 | 26 | 15 | 9 | 18.5 | 22 | 0.3 | 0.3 | 5 | 16 | 84 | 0.031 |
| GEEW16ES | 16 | 28 | 16 | 9 | 20 | 23 | 0.3 | 0.3 | 4 | 17 | 85 | 0.035 |
| GEEW17ES | 17 | 30 | 17 | 10 | 21 | 25 | 0.3 | 0.3 | 7 | 21 | 106 | 0.044 |
| GEEW20ES | 20 | 35 | 20 | 12 | 25 | 29 | 0.3 | 0.3 | 4 | 30 | 146 | 0.071 |
| GEEW25ES | 25 | 42 | 25 | 16 | 30.5 | 35.5 | 0.6 | 0.6 | 4 | 48 | 240 | 0.131 |
| GEEW30ES | 30 | 47 | 30 | 18 | 34 | 40.7 | 0.6 | 0.6 | 4 | 62 | 310 | 0.168 |
| GEEW32ES | 32 | 52 | 32 | 18 | 37 | 44 | 0.6 | 1 | 4 | 65 | 328 | 0.182 |
| GEEW35ES | 35 | 55 | 35 | 20 | 40 | 47 | 0.6 | 1 | 4 | 79 | 399 | 0.253 |
| GEEW40ES | 40 | 62 | 40 | 22 | 46 | 53 | 0.6 | 1 | 4 | 99 | 495 | 0.338 |
| GEEW45ES | 45 | 68 | 45 | 25 | 52 | 60 | 0.6 | 1 | 4 | 127 | 637 | 0.481 |
| GEEW50ES | 50 | 75 | 50 | 28 | 57 | 66 | 0.6 | 1 | 4 | 156 | 780 | 0.558 |
| GEEW60ES | 60 | 90 | 60 | 36 | 68 | 80 | 1 | 1 | 4 | 245 | 1220 | 1.15 |
| GEEW63ES | 63 | 95 | 63 | 36 | 71.5 | 83 | 1 | 1 | 4 | 253 | 1260 | 1.25 |
| GEEW70ES | 70 | 105 | 70 | 40 | 78 | 92 | 1 | 1 | 4 | 313 | 1560 | 1.71 |
| GEEW80ES | 80 | 120 | 80 | 45 | 91 | 105 | 1 | 1 | 4 | 400 | 2000 | 2.39 |
| GEEW90ES | 90 | 130 | 90 | 50 | 99 | 115 | 1 | 1 | 4 | 488 | 2440 | 3.21 |
| GEEW100ES | 100 | 150 | 100 | 55 | 113 | 130 | 1 | 1 | 4 | 607 | 3030 | 4.79 |
| GEEW110ES | 110 | 160 | 110 | 55 | 124 | 140 | 1 | 1 | 4 | 654 | 3270 | 5.78 |
| GEEW125ES | 125 | 180 | 125 | 70 | 138 | 160 | 1 | 1 | 4 | 950 | 4750 | 8.49 |
| GEEW160ES | 160 | 230 | 160 | 80 | 177 | 200 | 1 | 1 | 4 | 1360 | 6800 | 16.5 |
| GEEW200ES | 200 | 290 | 200 | 100 | 221 | 250 | 1.1 | 1.1 | 4 | 2120 | 10600 | 32.1 |
| GEEW250ES | 250 | 400 | 250 | 120 | 317 | 350 | 1.1 | 1.1 | 4 | 3750 | 17800 | 99.1 |
| GEEW320ES | 320 | 520 | 320 | 160 | 405 | 450 | 1.1 | 1.1 | 4 | 6200 | 30500 | 225 |
