GEG6C Maintenance Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 Mm

GEG6C Maintenance-Free Radial Spherical Plain Bearings GE6-FW GEH 6 C Size 6X16X9 mm

Product Description of Spherical Plain Bearing:

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.

design and features

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface.

The maintenance-free spherical plain radial bearing GEG_C without seals is particularly suitable for loads where low friction is needed. It has a sliding contact surface combination hard chrome/PTFE.

specifications

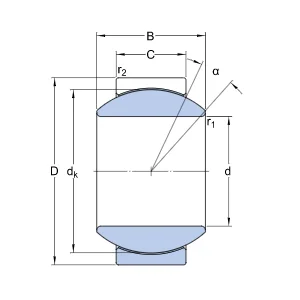

	Designations :	GEG6C,GE6-FW,GEH 6 C
	d :	6 mm
	D :	16 mm
	B :	9 mm
	C :	5 mm
	dk :	13 mm
	α :	21°
	Weight :	0.008 kg
	Ring Material :	Chrome Steel
	Contact Surface :	Steel / PTFE
	Sealed :	OPEN
	Lubricant :	Maintenance free , dry lubrication
	Extended Inner Ring:	No
